Lock
Adjustable shelves

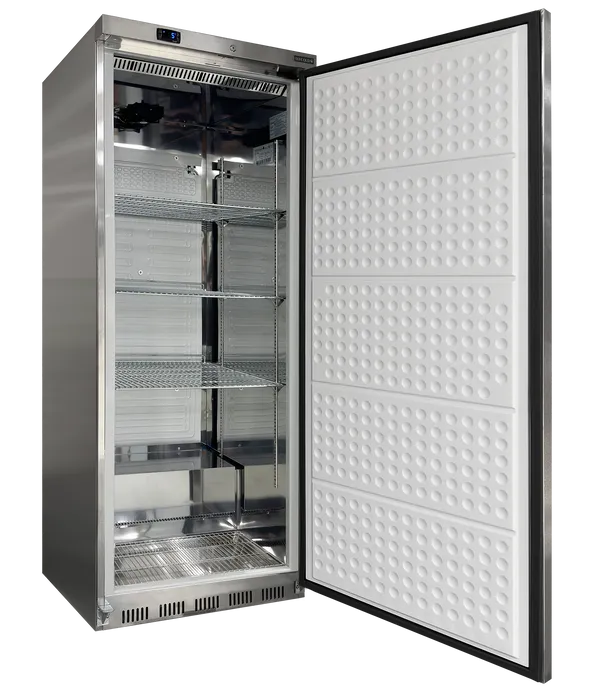

Storage Cooler GN2/1
UR600SS
Item no.: 53539
- Stainless steel exterior and interior
- Adjustable shelves GN2/1
- Excellent energy efficiency
- Fan assisted cooling
- Integrated handle
- Reversible solid door
- Digital controller and temperature display
- Adjustable feet with rollers to rear
- Lock
Technical specifications
Measures and Content
- Temperature Range0 to +8 °C
- Climate Class4
- Gross / Net Weight97 / 90 kg
- Gross / Net Volume620 / 570 l
Design and Material
- Feet / Legs2 adjustable feet
- Castors2 rollers
- Exterior FinishSS430
- Interior FinishSS304
- Interior LightNo
- Lock
- Door No & Type1 hinged solid door
- Shelves No & Type3 adjustable
- Shelf ColorGrey
- Shelf DimensionsGN2/1
- Max load on Shelves196 kg/m²
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingFan assisted
- Type of DefrostAutomatic, electric
- RefrigerantR600a
- Refrigerant Charge70 g
- Thermometer
Power and Consumption
- Energy ClassA
- Energy Consumption0.82 kWh/24h
- Annual Energy Cons.299 kWh/year
- Input Power120 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- Internal Dimension (WxDxH)657 x 580 x 1660 mm
- External Dimension (WxDxH)777 x 745 x 1895 mm
- Packed Dimension (WxDxH)840 x 760 x 2100 mm
- 40ft Container Load 42 pcs
- GTIN / EAN5708181737771
Downloads
Description
Spare parts
- 01Item no. 54097Top Hinge
- 02Item no. 14061Thermostat XR02CX 2 Probes
- 03
Item no. 12187Door Switch - 04Item no. 54087Front Panel
- 05
Item no. 12857Hinge Axis - 06
Item no. 12780Door Bushing For 7,6 mm Pin - 07
Item no. 10682Lock - 08Item no. 54088Gasket
- 09Item no. 34887Door SS 2021
- 10Item no. 54070Bottom Hinge Right
- 11Item no. 55439Shelf Stainless Steel
- 12Item no. 54069Bottom Hinge Left
- 13Item no. 55440Bottom Shelf Stainless Steel
- 14Item no. 54094Shelf Support
- 15
Item no. 15082Shelf Clip - 16Item no. 32491Evaporator Fixer
- 17
Item no. 14555Adjustable Feet - 19Item no. 54078Evaporator
- 21Item no. 54072Compressor LD70CY1
- 23Item no. 54073Condenser
- 24Item no. 53956Filter Drier
- 25Item no. 54098Water Pan
- 26Item no. 54091Rear Grill
- 27Item no. 54090Rear Condenser
- 28Item no. 53372Rear Spacer
- 29Item no. 54067Air Conductor
- 30Item no. 32425Evaporator Fan 12 VDC
- 31
Item no. 13896Probe NTC Dixell/Carel 10 Kohm - 32Item no. 32023Sensor Clip
- 33Item no. 54085Fan Support
- 34
Item no. 33015Fan Power Supply 12VDC 8 W - 35Item no. 54093Roller
- 36Item no. 54080Evaporator Cover
- 37Item no. 54066Air Conducter
- 40
Item no. 10676Keys For 10682
