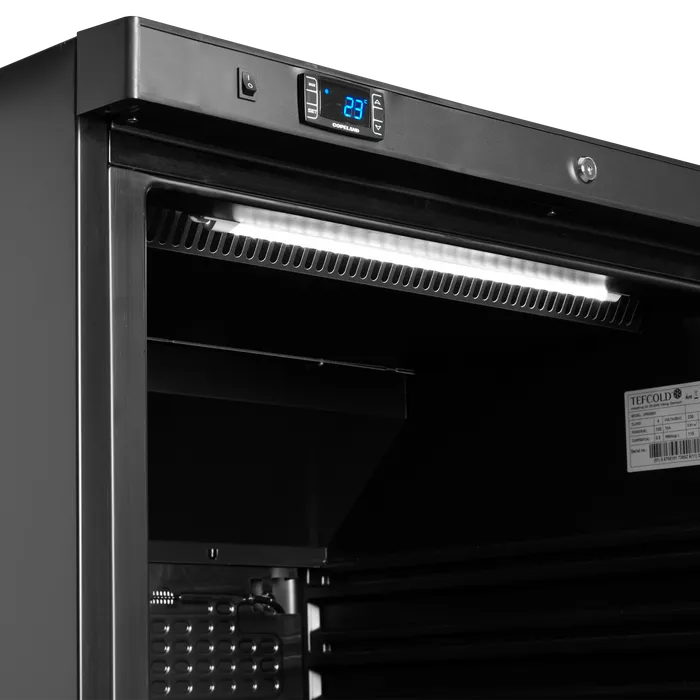

    Digital controller

  • product-53933-detailimage2

    Internal fan

  • product-53933-primaryimagenoshadow
  • product-53933-withcontentimagenoshadow
  • product-53933-openimagenoshadow
  • product-53933-detailimage1
  • product-53933-detailimage2
sticker

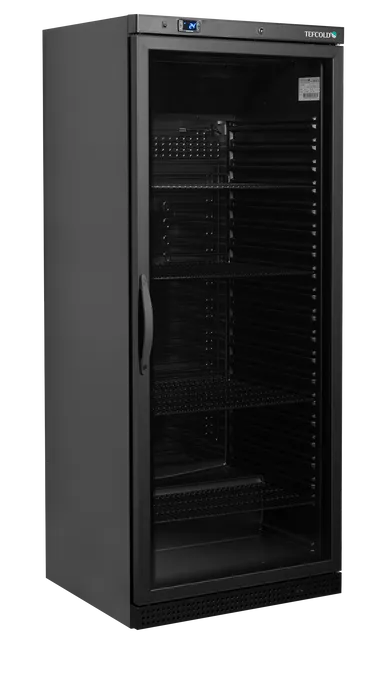

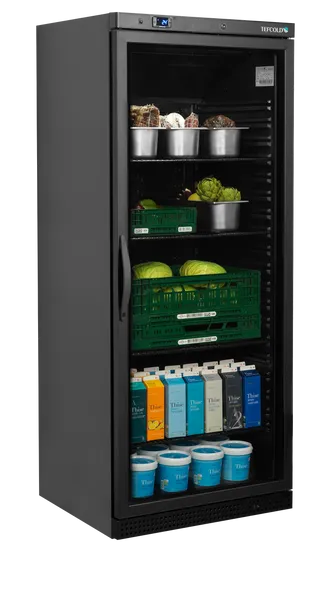

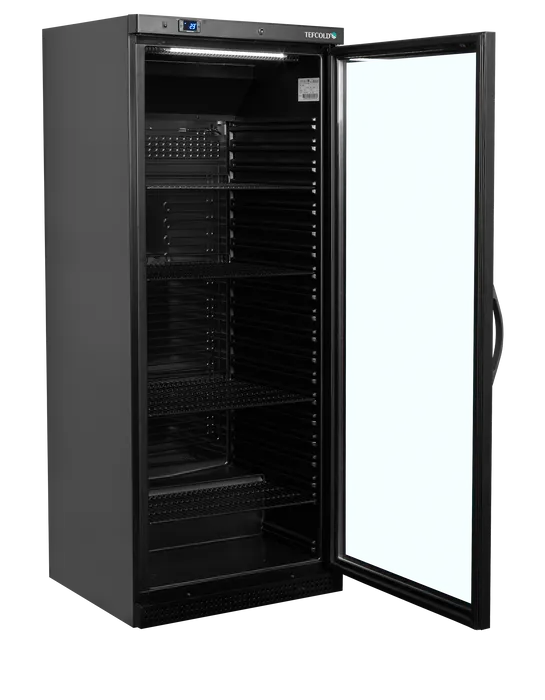

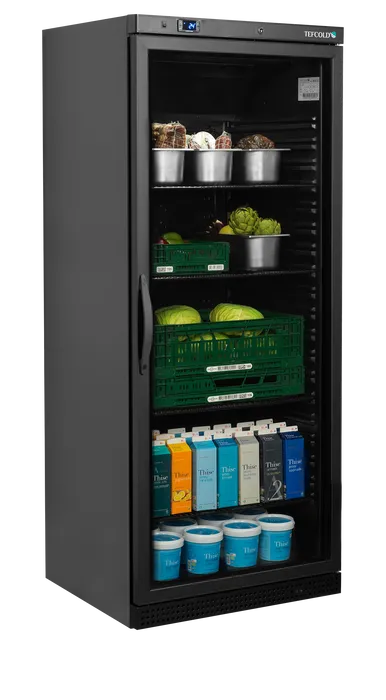

Display Cooler GN2/1

UR600BG

Item no.: 53933

  • Black interior and exterior
  • Adjustable shelves GN2/1
  • Reversible glass door
  • Fan assisted cooling
  • Digital controller and temperature display
  • LED interior light
  • Adjustable feet with rollers to rear
  • Lock
Energy arrow
Product Sheet

Technical specifications

Measures and Content

  • Temperature Range
    +2 to +10 °C
  • Climate Class
    4
  • Gross / Net Weight
    112 / 107 kg
  • Gross / Net Volume
    605 / 570 l
  • Cans 330 ml
    792 pcs
  • Cans 500 ml
    477 pcs
  • Bottles 330 ml
    480 pcs
  • Bottles 500 ml PET
    387 pcs
  • Total Display Area
    0.91 m²

Design and Material

  • Feet / Legs
    4 adjustable feet
  • Castors
    2 rollers
  • Exterior Finish
    Black
  • Interior Finish
    Black
  • Interior Light
    LED
  • Lock
  • Door No & Type
    1 hinged glass door
  • Door Reversible
  • Shelves No & Type
    4 wire shelves black
  • Shelf Color
    Black
  • Shelf Dimensions
    GN2/1
  • Max load on Shelves
    196 kg/m²

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Fan assisted
  • Type of Defrost
    Automatic
  • Refrigerant
    R600a
  • Refrigerant Charge
    100 g
  • Thermometer

Power and Consumption

  • Energy Class
    B
  • Max Ambient
    30°C at 55% RH
  • Energy Consumption
    2.25 kWh/24h
  • Annual Energy Cons.
    820 kWh/year
  • Input Power
    130 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    45 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    653 x 580 x 1680 mm
  • External Dimension (WxDxH)
    777 x 695 x 1895 mm
  • Packed Dimension (WxDxH)
    850 x 770 x 2070 mm
  • 40ft Container Load
    42 pcs
  • GTIN / EAN
    5708181738525

Downloads

Description

Spare parts

  • 1
    Top Hinge
    Item no. 12952Top Hinge
  • 2
    Item no. 53940Hook of Lock
  • 3
    Lamp Switch
    Item no. 13736Lamp Switch
  • 4
    Item no. 53941Front Panel Black
  • 5
    Hinge Axis
    Item no. 12857Hinge Axis
  • 6
    Door Bushing For 7,6 mm Pin
    Item no. 12780Door Bushing For 7,6 mm Pin
  • 7
    Lock
    Item no. 10682Lock
  • 8
    Item no. 53942Handle Black
  • 9
    Gasket
    Item no. 12595Gasket
  • 10
    Item no. 53943Glass Door
  • 11
    Item no. 53944Shelf Black
  • 12
    Bottom Hinge
    Item no. 12743Bottom Hinge
  • 13
    Item no. 53945Bottom Shelf Black
  • 14
    Item no. 53946Evaporator Fixer
  • 15
    Item no. 53947Evaporator Black
  • 17
    Item no. 53948Adjustable Feet
  • 20
    Item no. 11728Compressor HPKD190A R600
  • 21
    Item no. 53959Drain Hose
  • 22
    Cond./Evap. Fan Rah1238B
    Item no. 13318Cond./Evap. Fan Rah1238B
  • 23
    Item no. 53949Condenser Support
  • 24
    Item no. 53950Condenser
  • 25
    Item no. 53951Water Pan
  • 26
    Item no. 53952Rear Grill Black
  • 28
    Item no. 53666Evaporator Fan Black
  • 29
    Item no. 53953Fan Support Black
  • 30
    Sensor Fixed Box
    Item no. 32611Sensor Fixed Box
  • 31
    Item no. 53954Probe
  • 32
    Item no. 14061Thermostat XR02CX 2 Probes
  • 33
    LED Light
    Item no. 15567LED Light
  • 34
    Item no. 53955Thermostat Panel
  • 35
    Item no. 53956Filter Drier
  • 36
    Item no. 53957Fan Support
  • 37
    LED Power Supply
    Item no. 15620LED Power Supply
  • 38
    Item no. 53958Suction Pipe
  • 39
    Item no. 53372Rear Spacer
  • 40
    Keys For 10682
    Item no. 10676Keys For 10682
  • 41
    Item no. 32027Drain Pipe Clip
  • 42
    Item no. 53960Hose Nozzle
