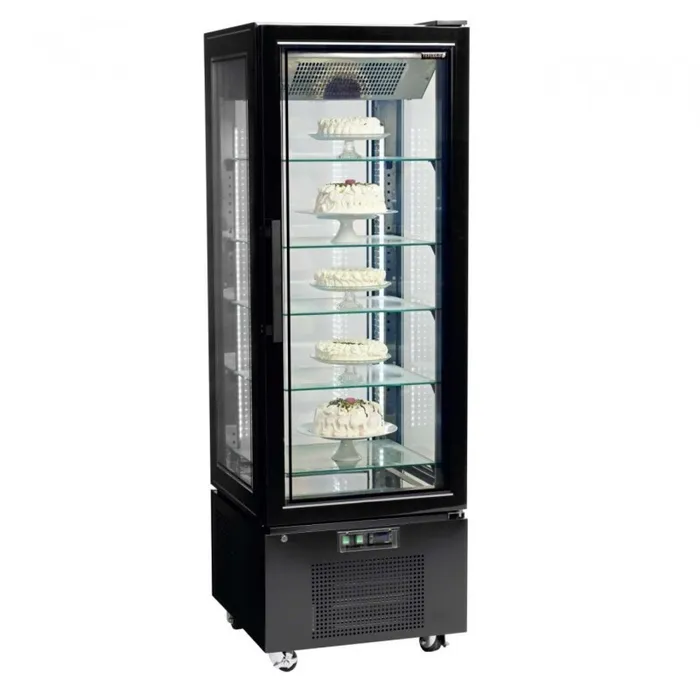

Refrigerated Display Case (Freezing)
UPD400-F
Item no.: 31540
- Double glazed glass on four sides
- Frameless glass door
- Great product presentation
- Internal LED light
- Black steel exterior
- Mirror effect stainless steel interior
- Adjustable glass shelves
- Freezing unit
Technical specifications
Measures and Content
- Temperature Range-22 to -18 °C
- Climate Class4
- Gross / Net Weight225 / 203 kg
- Gross / Net Volume364 / 248 l
- Total Display Area1.95 m²
Design and Material
- Castors4 wheels, 2 with brake
- Exterior FinishBlack / Glass
- Interior FinishStainless steel / Glass
- Interior Light4 x Vertically LED
- Lock
- Door No & Type1 hinged heated glass door
- Shelves No & Type5 glass shelves + base
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge150 g
- Thermometer
Power and Consumption
- Energy ClassD
- Energy Consumption23.51 kWh/24h
- Annual Energy Cons.8582 kWh/year
- Input Power1000 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level42 dB(A)
Dimensions
- Internal Dimension (WxDxH)588 x 516 x 1200 mm
- External Dimension (WxDxH)650 x 650 x 1950 mm
- Packed Dimension (WxDxH)720 x 720 x 2030 mm
- 40ft Container Load 48 pcs
- GTIN / EAN5708181365059
Downloads
Description
Spare parts
- 2
Item no. 32566Brake Wheel - 3
Item no. 32567Wheel - 4
Item no. 32568Door Hinge - 5
Item no. 12826Down Hinge Axis Jacket - 6
Item no. 32569Front Panel - 7
Item no. 32570Thermostat - 8
Item no. 13754Main Switch - 9Item no. 32480Thermostat Cover
- 10
Item no. 32571Juction Box - 11
Item no. 32573Left Panel - 12
Item no. 32572Transformer - 13
Item no. 15724Filter Drier 25 G - 14
Item no. 32575Solenoid Valve - 15
Item no. 32576Compressor - 16
Item no. 32577Condenser - 17
Item no. 32578Condenser Fan Blade - 18
Item no. 11568Water Box - 19
Item no. 32579Condenser Fan Grill - 20Item no. 32582Frame Heater Cover L
- 21Item no. 32583Frame Heater Cover H
- 22Item no. 32584Support Right Front
- 23Item no. 32585Support Left Front
- 24
Item no. 32586Glass Shelf - 25
Item no. 32587Shelf Clip, Front Left and Back Right - 26
Item no. 32588Shelf Clip, Front Right and Back Left - 27Item no. 32589Support Fixer
- 28Item no. 32590Support Left Back
- 29
Item no. 32591Led Lamp 6500 K - 30Item no. 32592Support Right Back
- 31Item no. 32593Door Frame
- 32Item no. 32595Left Glass
- 33Item no. 32596Back Glass Heated
- 34Item no. 32597Right Glass
- 35Item no. 32633Glass Door
- 36
Item no. 32599Door Handle - 37Item no. 32600Door Gasket
- 38Item no. 32601Top
- 39Item no. 32602Plastic Cap
- 40
Item no. 32603Up Hinge Cover - 41
Item no. 32604Door Hinge /Up Right - 42
Item no. 32605Air Flow Conduct Board - 43
Item no. 32606Fixed Board Of Evaporater - 44
Item no. 32607Evaporator - 45
Item no. 32608Circle Fan - 46
Item no. 32609Circle Fan Support - 47
Item no. 32610Circle Fan Cover - 48
Item no. 32611Sensor Fixed Box - 49
Item no. 32612Evaporator Water Pan - 50Item no. 32614Foam
- 51
Item no. 32615Protector For Water Pan - 52
Item no. 32617Lock Hook - 53
Item no. 32618Door Switch - 54
Item no. 10725Lock With Keys - 55
Item no. 32620Right Pannel - 56
Item no. 32621Back Panel - 57
Item no. 32622Led Power Supply - 58
Item no. 32613Water Pan Heater - 59
Item no. 32616Drain Pipe Heater - 60Item no. 32574Contactor
- 61Item no. 32802CIRCLE FAN
- 63Item no. 32594Frame Heater
