Sliding glass lids
Adjustable false base

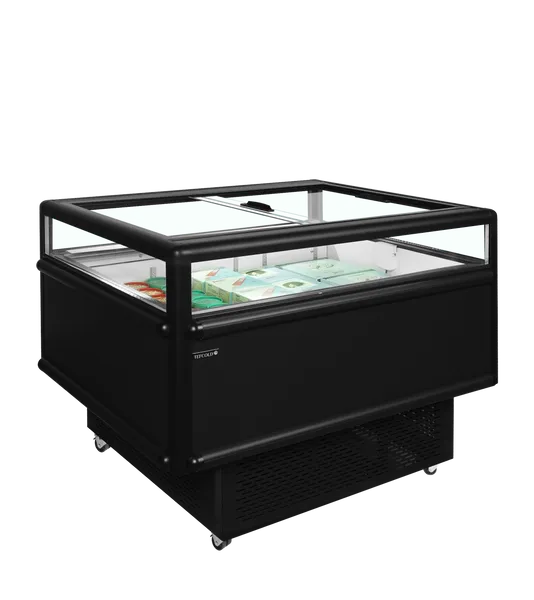

Black impulse cooler/freezer

UHD201 /Black

Item no.: 48825 (Substitution for 11805 UHD200 /Black)

Freezer / Cooler
Ideal for impulse sales
Sliding glass lids
Glass sides for better presentation of products
Impressive storage space
Ventilated cooling
Bumper bars on 4 sides
Castors with brake

Technical specifications

Measures and Content

Temperature Range
-2 to 5 / -24 to -18 °C
Climate Class
3
Gross / Net Weight
142 / 132 kg
Gross / Net Volume
200 / 165 l
Total Display Area
0.84 m²

Design and Material

Castors
4 wheels, 2 with brake
Exterior Finish
Black RAL9005
Interior Finish
Coated steel
Interior Light
LED Horizontal
Lock
No
Lid No & Type
2 flat sliding glass lids

Cooling and Functions

Type of Controller
Electronic
Type of Cooling
Ventilated
Type of Defrost
Automatic, hot gas
Refrigerant
R290
Refrigerant Charge
310 g
Thermometer

Power and Consumption

Energy Class
F
Energy Consumption
11.05 kWh/24h
Annual Energy Cons.
4032 kWh/year
Input Power
661 W
Voltage / Frequency
220-240/50 V/Hz
Noise Level
50 dB(A)

Dimensions

Internal Dimension (WxDxH)
1075 x 705 x 295 mm
External Dimension (WxDxH)
1255 x 1015 x 962 mm
Packed Dimension (WxDxH)
1400 x 1100 x 1120 mm
40ft Container Load
32 pcs
GTIN / EAN
5708181730796

Downloads

Description

Spare parts

1
Item no. 15528LED 900 mm - 6500K
2
Item no. 14532Particle Filter
3
Item no. 55200Fan Motor
4
Item no. 10531Double Glass Side 895x145x21
5
Item no. 32641Glass Heater Cable 5000 mm 60W
6
Item no. 10530Double Glass Front 1135x145x21
7
Item no. 10188Short Bumper Plastic
8
Item no. 10185Profile For Bumper 845 mm
9
Item no. 41119Defrost Valve
10
Item no. 10160Bumper End Plastic Black
11
Item no. 10182Long Bumper Plastic
12
Item no. 34735Water box
13
Item no. 14343Evaporator 60x200x1120 mm
14
Item no. 13797Thermometer, White
15
Item no. 32648Kick Plate Side
16
Item no. 41120Coil for Valve
17
Item no. 55201Filter Drier
18
Item no. 54959Thermostat EwPlus 978 EWF4DL0PS4F05 230V Amber
19
Item no. 55202Top Frame Corner Profile
20
Item no. 11789Compressor NT2180U R290
21
Item no. 13357Condenser Fan Bracket 72 mm
22
Item no. 13483Fan Blade 200 mm
23
Item no. 14097Condenser
24
Item no. 15494Connector For LED Wires
25
Item no. 15515Holder For LED Strip
26
Item no. 32642Kick Plate Back
27
Item no. 45500LED Power Supply
28
Item no. 32643Screw M5x15 Black
29
Item no. 32644Control Panel Sheet
30
Item no. 55203Profile For Bumber 1075mm
31
Item no. 14688Wheels Without Brake 50 mm
34
Item no. 14687Wheels With Brake 50 mm
35
Item no. 32646Kick Plate Front
37
Item no. 55204Evaporator Fan
38
Item no. 11132Inner Sheet Middle
39
Item no. 11133Inner Sheet Side
40
Item no. 14338Evaporator 30x200x1200 mm
41
Item no. 55205Lid Frame Support
42
Item no. 55206Lid Profile 1128 mm
43
Item no. 55207Lid Profile 773 mm
44
Item no. 43617Handle For Lid Black
45
Item no. 13141Sliding Glass Lids Complete Black
48
Item no. 35196Evaporator Cover
