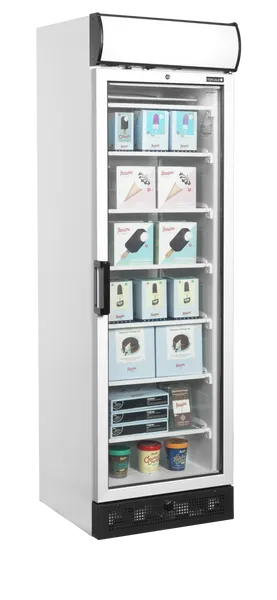

Display Freezer

UFFS371GCP

Item no.: 46986 (Substitution for 32446 UFFS370GCP)

Great product presentation
Illuminated canopy
Heated glass door
Fixed freezing shelves
Internal LED light
Digital thermometer
Defrost water drain
Adjustable feet

Technical specifications

Measures and Content

Temperature Range
-24 to -14 °C
Climate Class
4
Gross / Net Weight
103 / 98 kg
Gross / Net Volume
300 / 270 l
Total Display Area
0.74 m²

Design and Material

Feet / Legs
2 adjustable feet
Castors
2 rollers
Exterior Finish
White
Interior Finish
White
Interior Light
LED
Lock
Door No & Type
1 heated hinged glass door
Door Reversible
No
Shelves No & Type
6 fixed freezing shelves
Shelf Color
Chrome
Shelf Dimensions
470 x 413 mm
Max load on Shelves
110 kg/m²
Canopy Type
D-Shape

Cooling and Functions

Type of Controller
Mechanical
Type of Cooling
Static
Type of Defrost
Manual
Refrigerant
R290
Refrigerant Charge
85 g
Thermometer

Power and Consumption

Energy Class
C
Max Ambient
30°C at 55% RH
Energy Consumption
8.32 kWh/24h
Annual Energy Cons.
3035 kWh/year
Input Power
570 W
Voltage / Frequency
220-240/50 V/Hz
Noise Level
40 dB(A)

Dimensions

Internal Dimension (WxDxH)
470 x 440 x 1555 mm
External Dimension (WxDxH)
595 x 640 x 1980 mm
Packed Dimension (WxDxH)
680 x 710 x 2050 mm
40ft Container Load
54 pcs
GTIN / EAN
5708181726416

Downloads

Description

Spare parts

1
Item no. 10221Canopy Base Black
2
Item no. 12961Top Hinge Base Left/Right
3
Item no. 10715Lock With Keys
3
Item no. 12911Pin For Hinge
4
Item no. 15629LED Power Supply 12 V 35 W
5
Item no. 15515Holder For LED Strip
6
Item no. 15650LED Strip 580 mm 7000K/7LM
10
Item no. 10318Left/Right Side Cover Canopy
11
Item no. 10308Cover For Canopy Opal
12
Item no. 13644Green Control Lamp
13
Item no. 13737Light Switch
14
Item no. 12191Door Switch Black 14x30 mm
15
Item no. 14500Wire On Tube Evaporator
18
Item no. 13994Thermostat K50-3459
19
Item no. 12786Bushing For Hinge With Wires
20
Item no. 13531Fan Motor Int/Ext
21
Item no. 13390Cover For Internal Fan
22
Item no. 15367Fluorescent Tube 15W
22
Item no. 15510End Cap LED Light
23
Item no. 10123Washer
23
Item no. 15597LED Light Base
24
Item no. 15592LED Light 410 mm
25
Item no. 14965Plastic For Tube Freezing Shel
26
Item no. 15600LED Light Cover
27
Item no. 14495Tilting Fixture For Frezing Ri
28
Item no. 14496Tilting Fixture For Frezing Sh
29
Item no. 11460Drain Plug
30
Item no. 10721Lock With Keys
34
Item no. 12064Door Gasket Black 585x1620
35
Item no. 12354Glass Door With Black Frame
36
Item no. 12909Pin Bottom Hinge For Wires R
37
Item no. 12687Handle Aluminium Black
38
Item no. 12756Bottom Hinge For Wires Right
39
Item no. 13614Cable Cover
41
Item no. 11342Ventilation Grill Bottom Black
42
Item no. 10042Cover For Screw White
43
Item no. 11556Internal Drain Plug
44
Item no. 13793Thermometer Digital White
47
Item no. 15721Filter Drier 20 G
52
Item no. 11769Compressor NEU1140U R290
54
Item no. 14614Pin For Big Roller
55
Item no. 14608Big Roller
57
Item no. 10658Transformer For Glass
58
Item no. 10127Washer For Condenser
59
Item no. 11849Grill Cover For Compressor Com
60
Item no. 12837False Bottom Hinge
61
Item no. 14570Adjustable Foot
65
Item no. 14185Condenser Second Part
