Popsicle tray available upon request
Stand available upon request

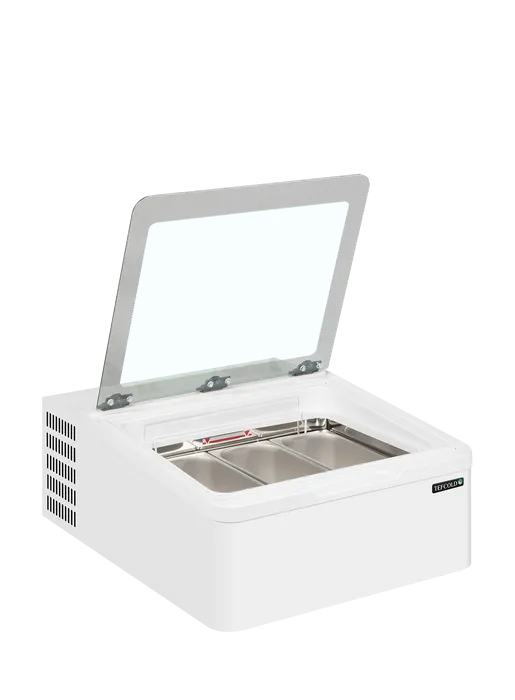

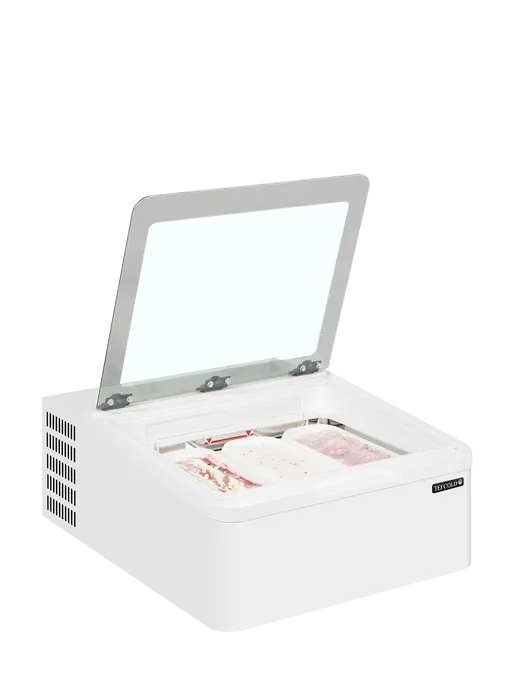

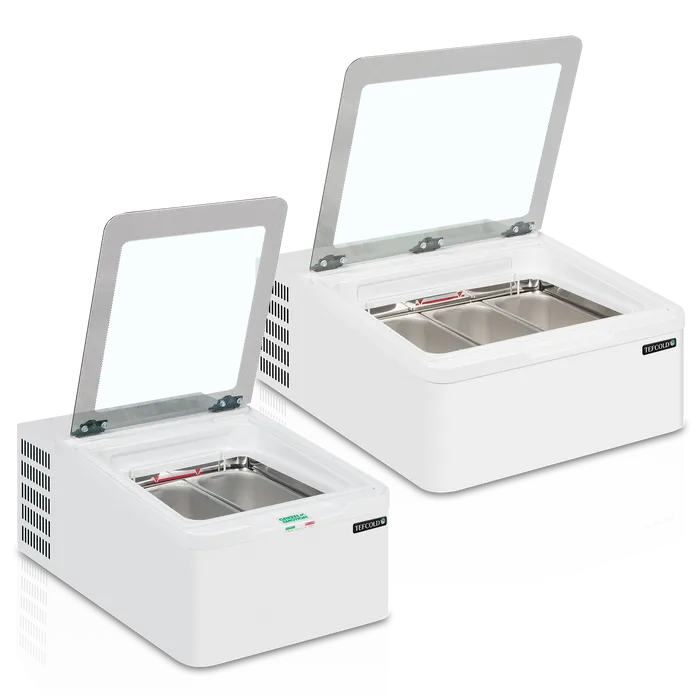

Scoop Ice Cream Freezer
ICE3
Item no.: 47527
- Countertop model
- Angled display for better presentation
- Suitable for Napoli Pans (not included)
- Ideal for buffets
- Easy access to products
- Flat hinged glass lid
- Static cooling
- Adjustable feet
- Optional popsicle tray
Technical specifications
Measures and Content
- Temperature Range-22 to -10 °C
- Climate Class4
- Gross / Net Weight36 / 32 kg
- Gross / Net Volume35 / 29 l
- Total Display Area0.18 m²
- Serving Capacity3 Napoli Pans (5 L)
- Storage Capacity (under)No under storage
Design and Material
- Exterior FinishWhite
- Interior FinishStainless Steel
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge25 g
- Thermometer
Power and Consumption
- Energy ClassA
- Energy Consumption2.88 kWh/24h
- Annual Energy Cons.1051 kWh/year
- Input Power90 W
- Voltage / Frequency220-240/50 V/Hz
Dimensions
- Internal Dimension (WxDxH)529 x 389 x 173 mm
- External Dimension (WxDxH)654 x 790 x 345 mm
- Packed Dimension (WxDxH)755 x 890 x 375 mm
- 40ft Container Load 150 pcs
- GTIN / EAN5708181726997
Downloads
Description
Spare parts
- 01Item no. 32875Thermometer Rectangular L1000 White
- 03Item no. 32877Acc.Set Cubigel Hly99Aa 220-240V 50Hz Rsir R600a
- 04Item no. 32878Compressor 220-240V 50Hz Rsir R600a
- 05Item no. 32879Bracket Condenser Bundy Holder
- 06Item no. 32880Condenser Wires 6T-6R
- 07Item no. 32881Filter XH9 Entry 5.2 Out 2.75 gr10
- 08Item no. 32882Fan motor 120X120X25
- 09Item no. 47864Finger Guard 120x120
- 10Item no. 32884Thermostat K50Bs3498000 Chef 600 N R290a
- 11Item no. 32885Thermostat Knob Whit Arrow
- 12Item no. 35164GLASS 625X540X4 MINI CREAM 3V TRANSP. BLACK/EDGE
- 13Item no. 32887Adjustable Glass Hinge Dolce Vista 6 Black
- 14Item no. 35163Gasket 472x615 Glass Mini Cream 3V
- 15Item no. 47863Rear Grid White
- 16Item no. 32876Levelling Foot M8X38
- 17Item no. 32883Plug Cable 3X0,75X2150
